Pinstripe DISOxo Line Isolator

Compact stereo line isolation for modern pedalboards

The Pinstripe Pedals DISOxo is a compact two-channel line isolator designed to connect modern pedalboard rigs, amp modelers and other line-level equipment directly to a PA system while maintaining the proper signal level.

Unlike a conventional DI box, which provides impedance matching while reducing the signal to mic level, the DISOxo maintains your line-level signal while adding transformer isolation, ground lifting and balanced XLR outputs. This makes it an ideal interface for devices such as the TONEX, Strymon Iridium, Universal Audio amp pedals, Line 6 HX Stomp, Walrus ACS1, Boss IR-2 and IR-200, as well as other modelers and DSP-based guitar rigs.

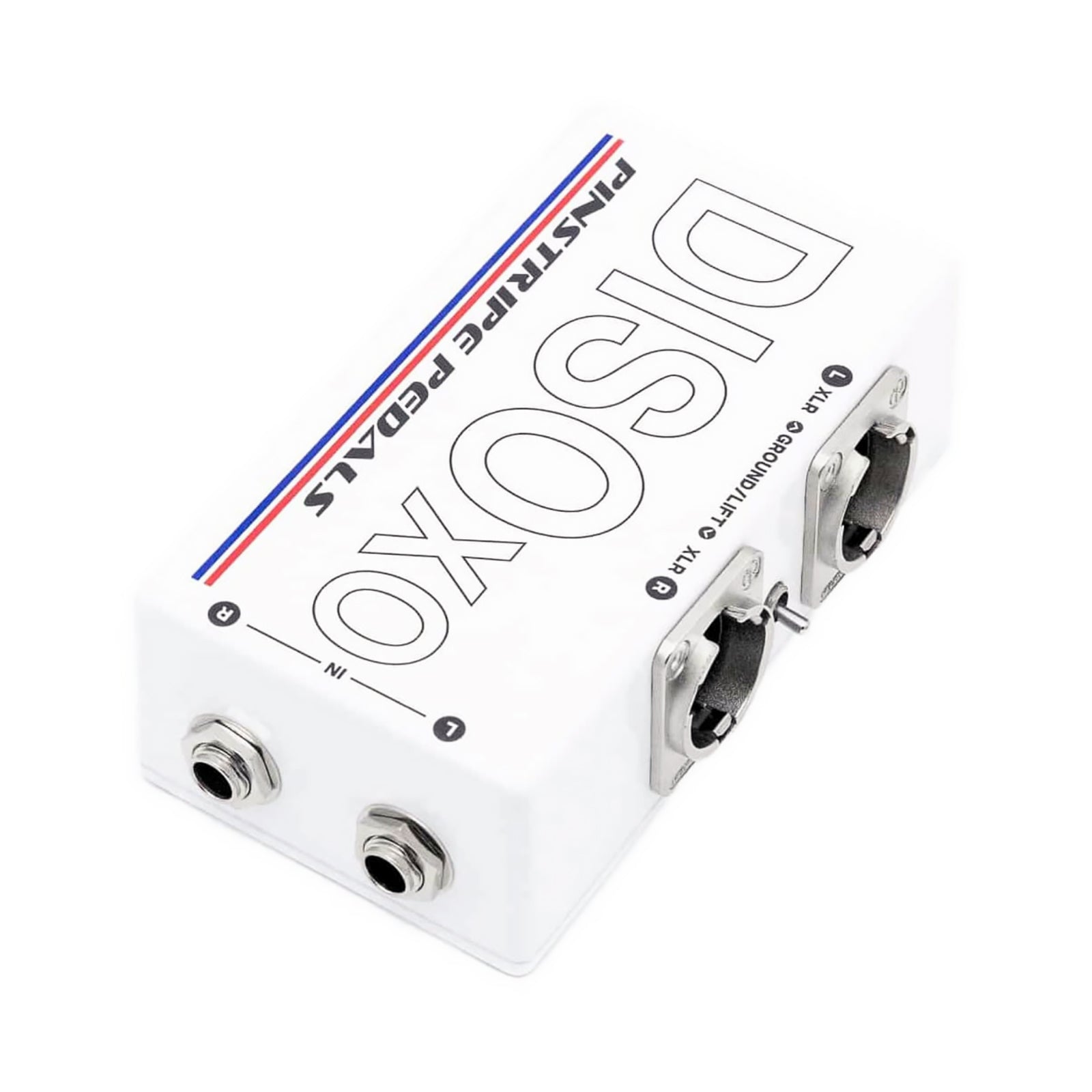

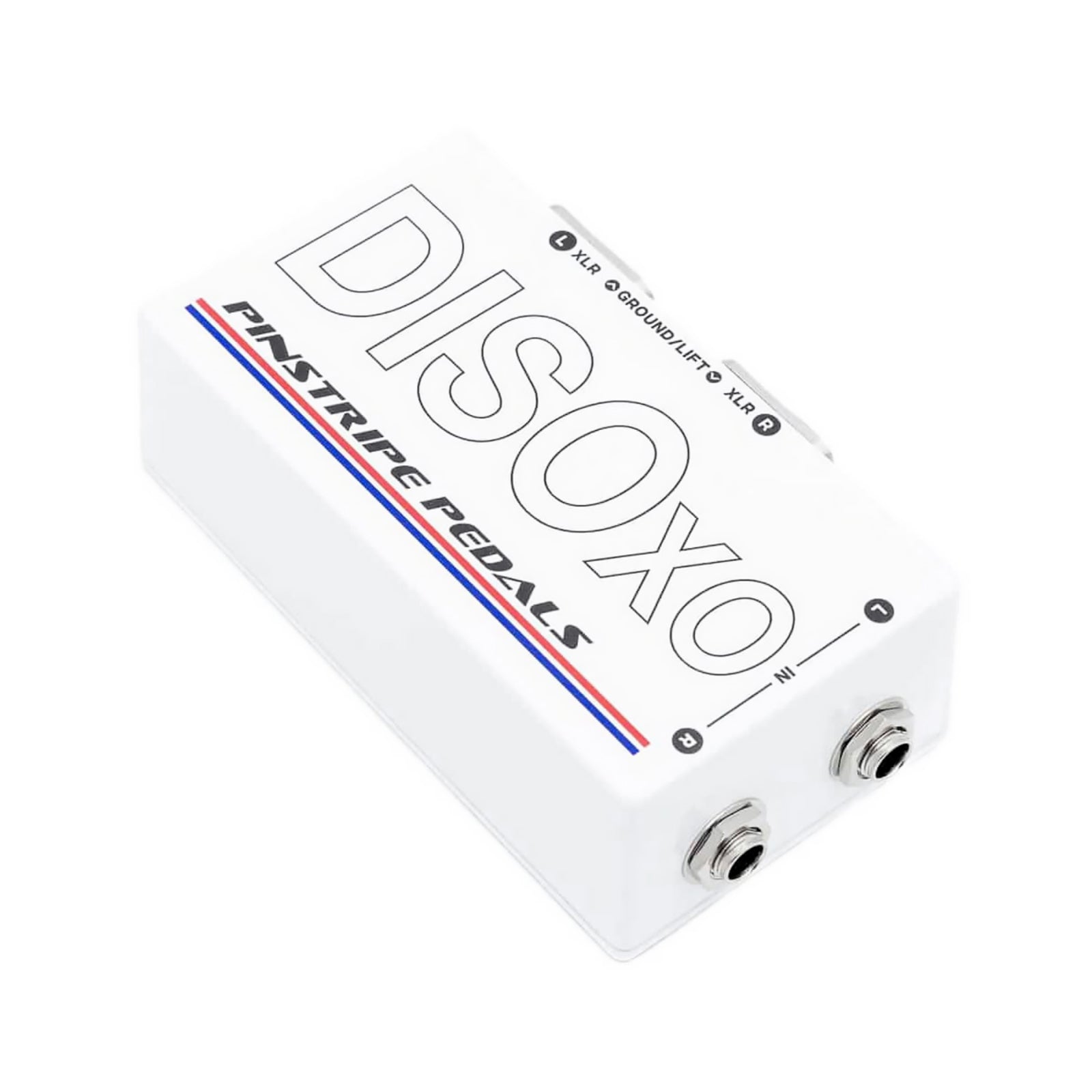

Two 1/4" inputs are converted to balanced XLR outputs through a pair of 1:1 line isolation transformers. The transformer-isolated signal path helps eliminate ground-loop hum while also preventing phantom power from the mixing console from reaching the outputs of your pedals.

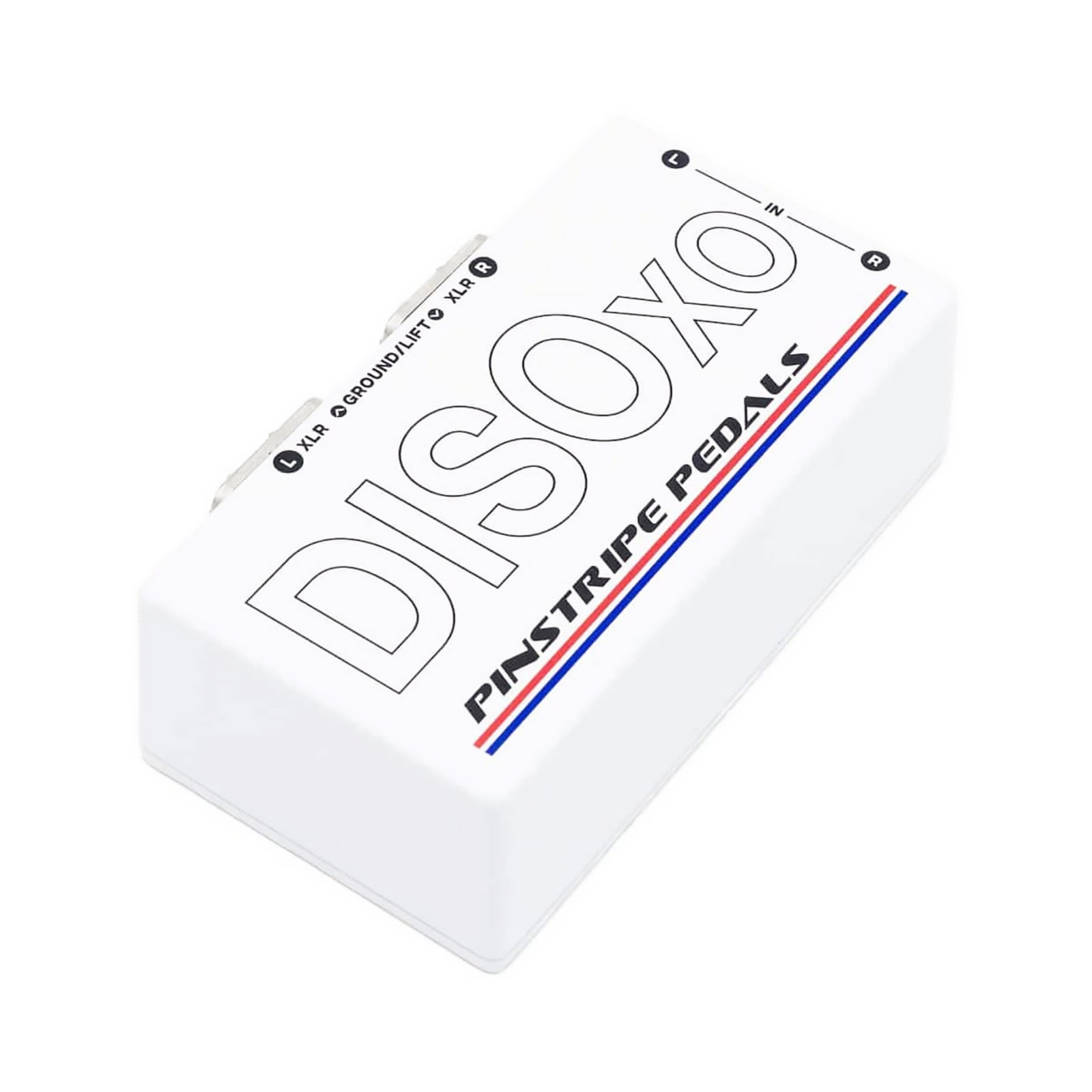

Where the DISO+ provides additional 1/4" outputs and summing functionality, the DISOxo focuses on the essentials in a considerably smaller enclosure. Its compact 125B format integrates easily into a pedalboard, while the Ground Lift switch is positioned between the XLR connectors to help prevent accidental switching.

The DISOxo is also particularly useful with electronic percussion pads and other equipment that already provides a line-level signal on 1/4" outputs. Rather than unnecessarily reducing that signal through a conventional DI box, the DISOxo maintains the available level while providing balanced XLR connections and transformer isolation for connection to professional audio equipment.

Built by hand in the USA with high-quality transformers, all-metal Switchcraft and Neutrik connectors and a sealed Grayhill switch, the DISOxo provides a simple and reliable way to connect a stereo or dual-mono pedalboard rig directly to front of house while keeping your signal clean, quiet and at the proper level.

Pinstripe Pedals DISOxo Features

• Compact two-channel line isolator for stereo and dual-mono rigs

• Designed for amp modelers, DSP-based pedalboards and other line-level equipment

• Maintains line-level signals without the level reduction of a conventional DI box

• Two 1/4" inputs accepting balanced or unbalanced signals

• Two balanced XLR outputs for connection to PA and professional audio equipment

• Two 1:1 line isolation transformers

• Ground Lift switch helps eliminate ground-loop hum

• Transformer isolation protects connected equipment from phantom power

• Compact 125B enclosure designed for easy pedalboard integration

• Also suitable for electronic percussion pads and other line-level sources

• Switchcraft and Neutrik all-metal connectors

• Grayhill sealed switch

• Hand-built in the USA

• Dimensions: 4.78" × 2.61" × 1.56"
