KMA Endgame End of Chain Solution

A Note About This Pedal's Condition

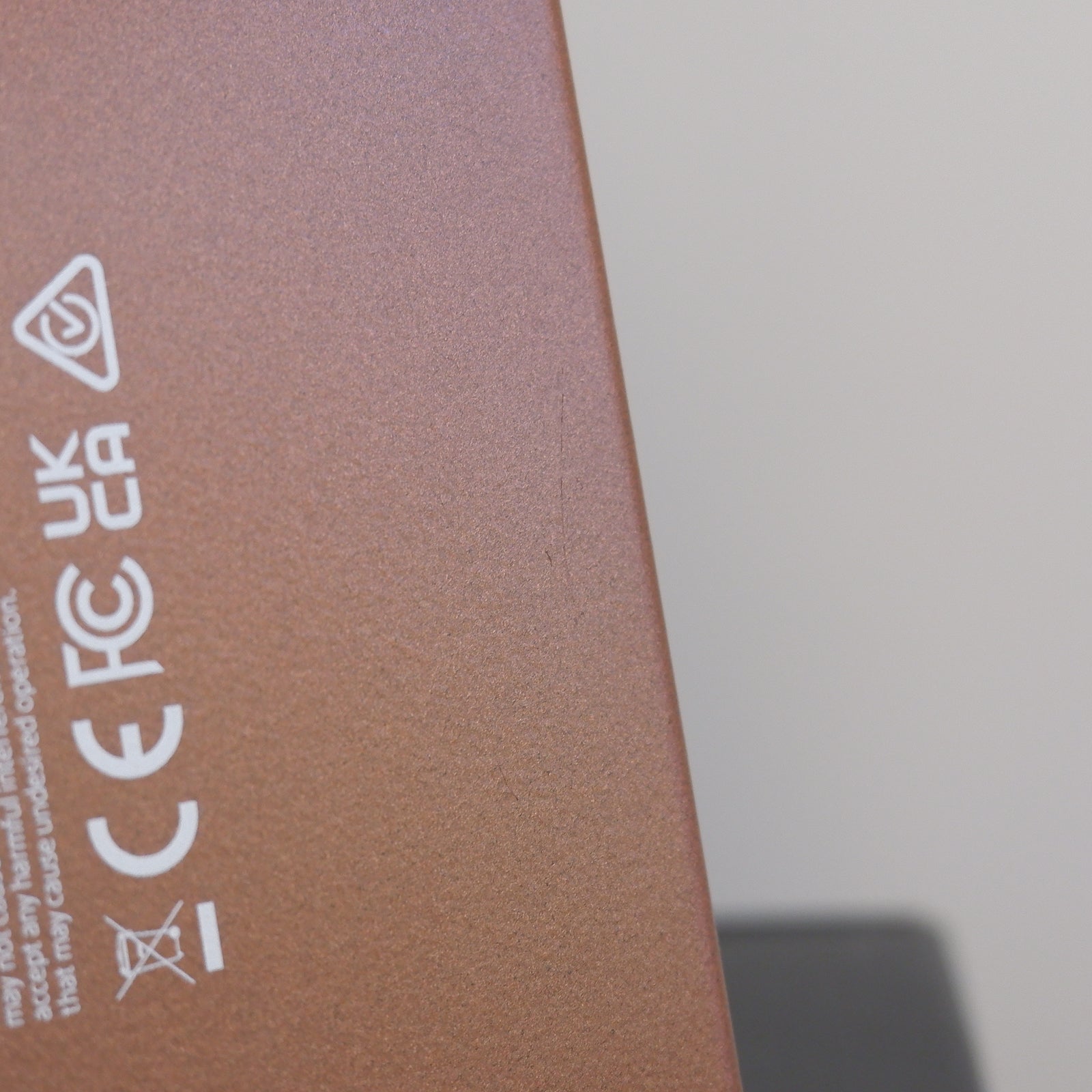

This pre-owned KMA Endgame shows minor signs of use.

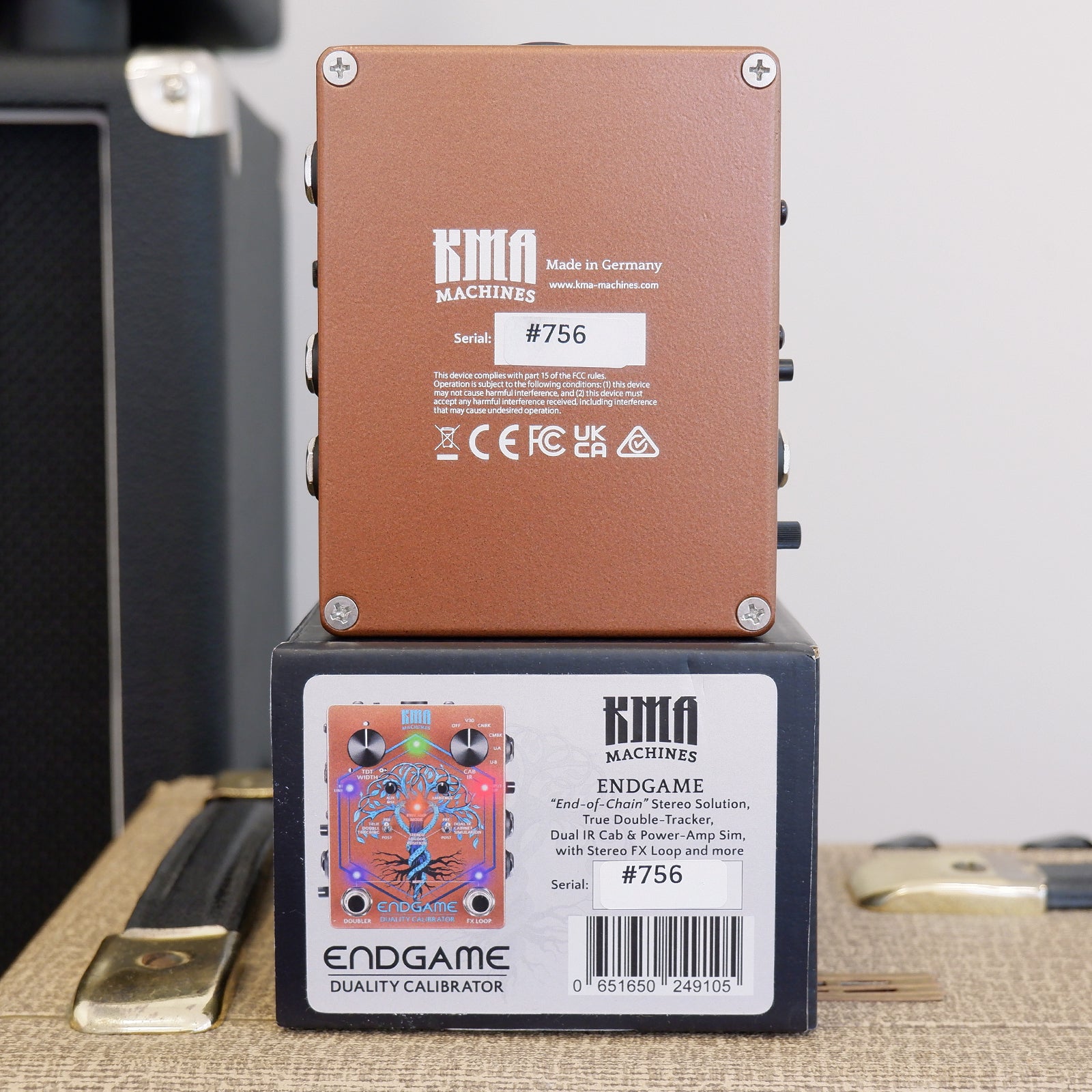

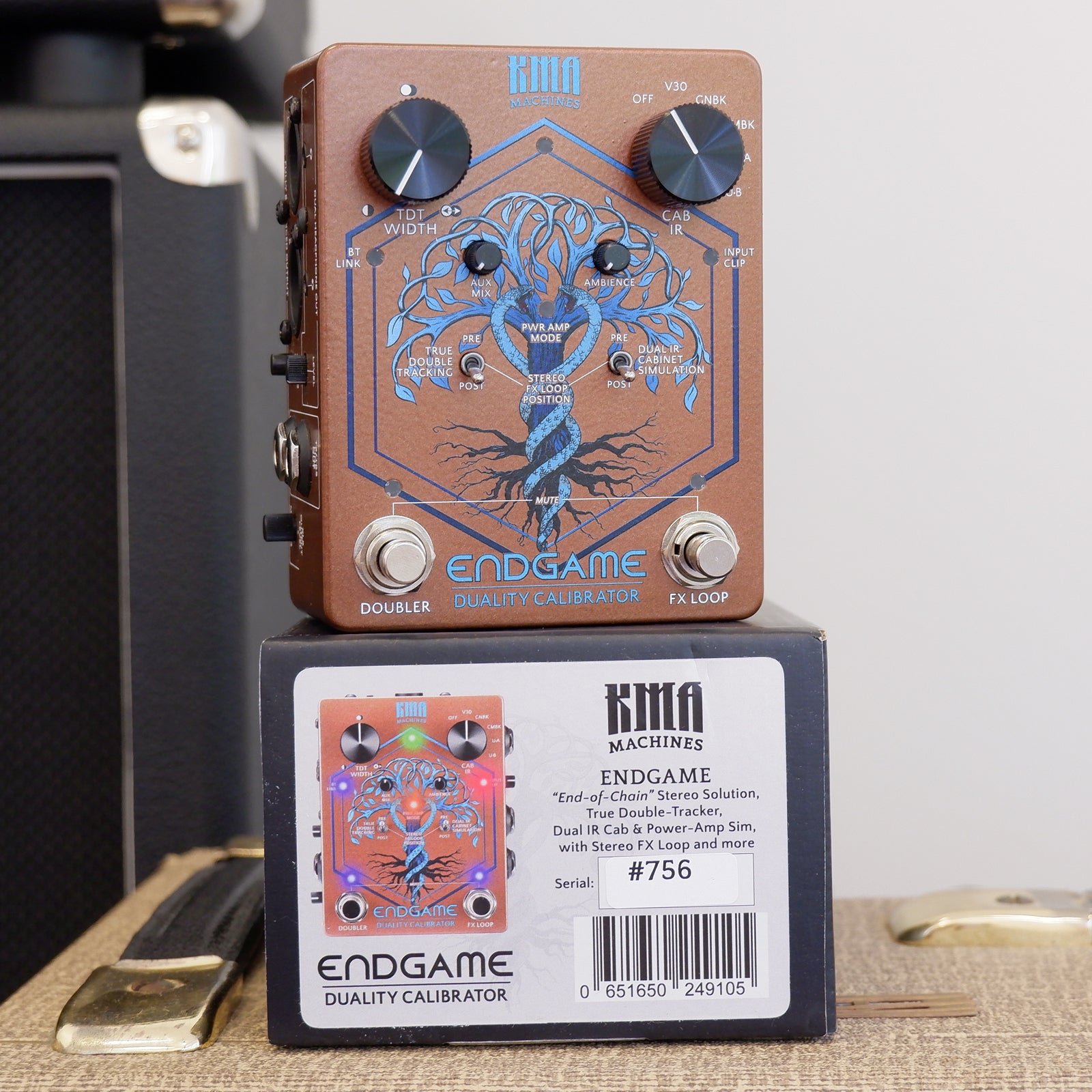

The pedal works perfectly and includes its original box and accessories.

The complete final stage for your pedalboard

The KMA Endgame is an exceptionally comprehensive end-of-chain solution designed to bring together the essential tools needed for a modern pedalboard rig. Combining a stereo effects loop, True Double-Tracker, dual cabinet IR loader, tube power amp simulation, balanced outputs, headphone monitoring and extensive routing options, it can serve as the final connection between your pedalboard and virtually any playing, recording or performance setup.

Whether you're building a compact ampless rig, sending your pedalboard directly to a PA or recording interface, practicing through headphones or simply looking for greater control over a stereo setup, Endgame consolidates an impressive amount of functionality into a single compact pedal.

Stereo FX Loop

Endgame features a foot-switchable stereo effects loop that makes it easy to integrate stereo delays, reverbs, modulation and other effects into your rig. The loop is buffered to help maintain signal integrity over longer cable runs and can be positioned in different places within Endgame's internal signal chain.

Both the cabinet simulation and True Double-Tracker can be placed before or after the FX Loop using dedicated PRE/POST switches, providing four different routing combinations and considerably more flexibility than a conventional fixed signal path.

True Double-Tracker

Endgame's foot-switchable True Double-Tracker creates the width and dimension of a double-tracked performance from a single instrument. Rather than simply applying a conventional modulation effect, it recreates the subtle differences that occur between two separate performances for a more natural sense of depth and separation.

The Width control determines how far apart the doubled signals are spread across the stereo field, ranging from a centered image through a 50% left/right spread to full 100% left/right separation.

Dual Cabinet Simulation IR Loader

The integrated Dual Cab Simulation IR Loader provides a straightforward way to run your pedalboard directly into a PA system, audio interface, headphones or other full-range equipment without requiring a traditional guitar cabinet.

Three onboard presets use Genuine IRs from Celestion Digital and cover a range of familiar cabinet sounds. Two additional user slots, A and B, allow third-party impulse responses to be loaded into Endgame via USB-C, making it easy to customize the cabinet section around your own rig.

An Ambience control adds adjustable room character to the cabinet simulation, helping create a more natural sense of space when monitoring directly or recording.

Tube Power Amp Simulator

Endgame also includes a switchable tube power amp simulation designed to add the subtle compression, sag and response associated with a traditional tube amplifier. Three selectable models recreate the general character of EL34, 6L6 and KT88 power sections, allowing the response to be matched to different styles of amp and cabinet tones.

The power amp simulation can also be completely bypassed, giving you the flexibility to use Endgame with another external amp simulation or with equipment that doesn't require additional power amp coloration.

Flexible Signal Routing

One of Endgame's greatest strengths is the ability to determine where its major processing sections sit within the signal chain. Both the Cab Sim and True Double-Tracker can be positioned before or after the stereo FX Loop independently, allowing you to decide whether your stereo effects are processed before or after cabinet simulation and doubling.

This is particularly useful with delays and reverbs, which can be placed after the cabinet and Double-Tracker for a spacious studio-style signal path, or moved earlier in the chain for a completely different response.

Headphones, DI and Stereo Outputs

Two 3.5mm headphone outputs with dedicated level control make Endgame equally useful for silent practice and monitoring. The second output can be used to share the mix with another musician or provide an additional output feed to compatible equipment.

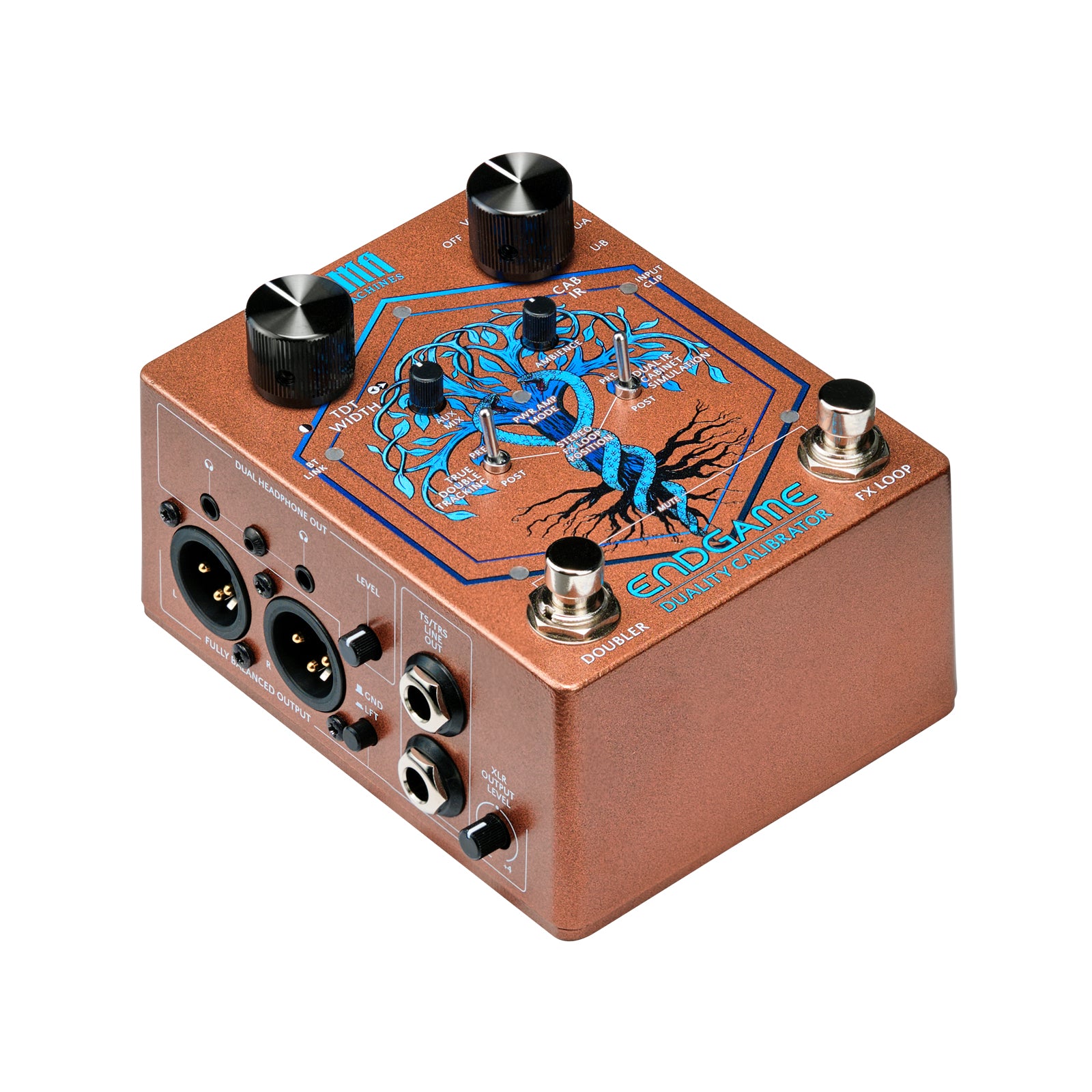

For live and recording applications, Endgame provides stereo fully balanced XLR DI outputs with ground lift and variable level control, alongside stereo 1/4" balanced TRS outputs. An Aux Input, including Bluetooth connectivity, also makes it easy to play along with backing tracks or other audio sources.

KMA Endgame Duality Calibrator Features

• Comprehensive end-of-chain solution for pedalboard-based rigs

• Foot-switchable stereo FX Loop

• Dual Cabinet Simulation IR Loader

• Three Celestion Digital powered IR presets

• Two user-definable IR slots

• Ambience control for room simulation

• Foot-switchable True Double-Tracker with Width control

• Switchable tube power amp simulation with EL34, 6L6 and KT88 models

• Flexible PRE/POST routing for Cab Sim and True Double-Tracker

• Dual 3.5mm headphone outputs with level control

• Aux Input with Bluetooth connectivity

• Stereo fully balanced XLR DI outputs with ground lift and variable level control

• Stereo 1/4" balanced TRS outputs

• Power: 9V DC

• Current draw: 490mA

• Dimensions: 2.91" × 4.13" × 4.76"
