Free The Tone Overdriveland Custom Shop

Overdriveland: opening doors to novel overdrive possibilities!

Overdriveland was born to be as lustrous and distinctive as the elusive Dumble amplifier.

Free the Tone’s founder and designer, Yuki Hayashi, spent over 20 years maintaining and repairing Dumble amplifiers and was a proud owner of multiple Dumble amps himself.

Dumble amplifiers are known for their distinctive, thick and rich harmonics and offer exceptional sensitivity to the guitar's signal level.

Furthermore, the drive sound of a Dumble amp responds to a guitarist's playing, as if the amplifier itself possesses intention!

It was this desire to capture this unique feel that sparked the development process of Overdriveland.

In order to imbue the pedal with Dumble-like characteristics, Free the Tone translated various ideas into circuitry.

These hours of experimentation led to a pedal that reacts just like an amplifier!

Overdriveland packs the same harmonically-rich cleans and responsive overdrive as the mythical Dumble Overdrive Special amp.

And, the Custom Shop version incorporates custom modules that respond even more sensitively to input signals!

Normal and Drive channels.

Overdriveland consists of two main sections: a Normal Channel and a Drive circuit.

The Normal Channel features "EQ ON/Glass" and "Rock/Jazz" switches to help set the foundation for your sound.

The "EQ ON/Glass" switch controls the equalization function of the Normal Channel.

When set to "EQ ON," the Tone circuit is activated, allowing you to shape your tone.

"Glass" bypasses the Tone circuit, giving you a glassy tone reminiscent of turning on the Bright switch on a 1960s Fender.

The "Rock/Jazz" switch tailors the frequency response and gain settings for either enhanced gain richness or a smoother character.

The Drive circuit is equipped with a "HI-CUT" filter circuit, making it easy to adjust the high-frequency characteristics.

Additionally, the "Push" control adjusts the signal level sent from the Drive circuit to the Normal Channel.

Power supply switch.

The Free the Tone Overdriveland is equipped with a unique power supply switching feature.

When you select "DC9V", power is supplied to the audio circuit via the 9V DC jack.

When "VARI” is selected, power is supplied to the audio circuit through an internal boost circuit.

You can adjust the voltage supplied to the audio circuit from 10V to 19V.

By adjusting the voltage, the dynamic range and the clipping point of the signal can be altered.

Lowering the voltage reduces the level of the clipping point, resulting in long sustain.

Increasing the voltage raises the level before reaching the clipping point, giving a sound that really cuts through.

This lets you produce drastically different sounds, as if entirely separate overdrive pedals were available!

Free the Tone Overdriveland ODL-1-CS Custom Shop features:

• Inspired by the mythical Dumble Overdrive Special amplifier.

• Packs harmonically-rich cleans and responsive overdriven tones.

• Custom Shop version incorporates components allowing for more even more sensitivity.

• Custom Shop versions incorporates a unique 10-19V feature that affect the pedal’s dynamic range.

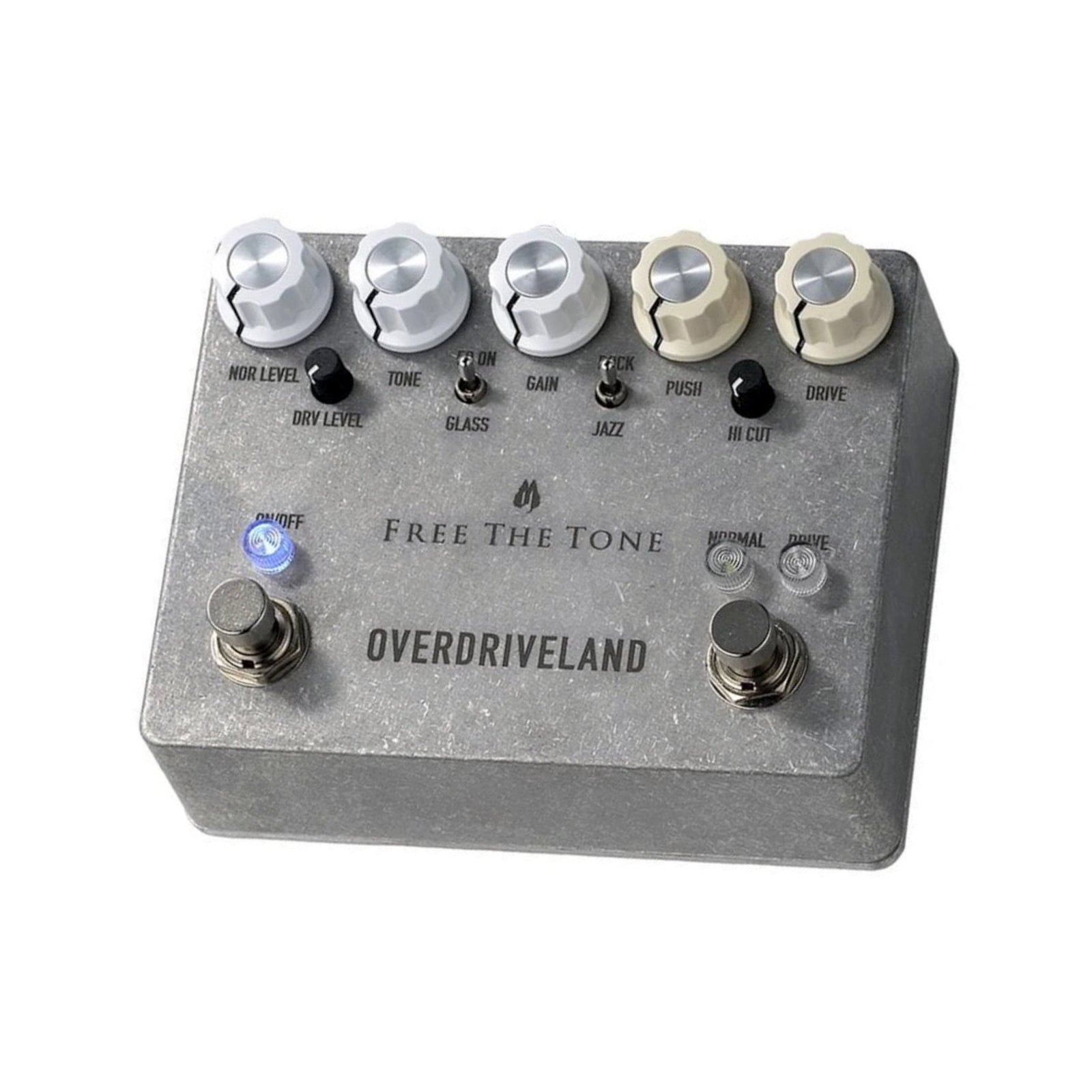

• Controls: Normal Level, Drive Level, Tone, Gain, Push, Hi Cut, Drive.

• Switches: EQ ON / Glass, Rock / Jazz.

• Power: 9V DC.

• Current Draw: 200mA.

• Dimensions: 97mm X 120mm X 51mm.
